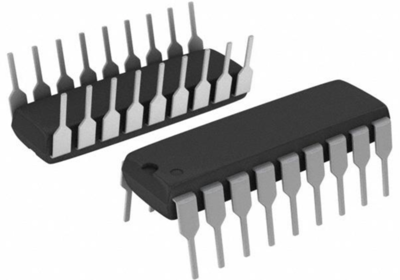

ULN2802A | STMicroelectronics
Bipolar junction transistor, NPN, 500 mA, 50 V, THT, PDIP-18, ULN2802A
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.5827 € *
Available: 685 pcs.
Total Price:
1.58 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5827 €
25 pcs.
1.4756 €
100 pcs.
1.3804 €
*incl. VAT plus shipping costs
Subject to prior sale
Darlington transistor, ULN2802A, STMicroelectronics
The ULN2802A contains eight Darlington transistors with common emitters and integral suppression diodes for inductive loads.
Features
- Output can be paralleled
- Inputs pinned opposite outputs to simplify board layout
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Enclosure | PDIP-18 | |
| Version | NPN | |
| Saturation voltage | 1.3 V | |
| Collector current | 500 mA | |
| max.voltage between collector and emitter Vceo | 50 V | |
| Min DC gain | 1000 mA | |
| Rated current | 500 mA | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 20 pieces |
| Customs tariff number | 85412900 |
| Country of origin | MY |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
