ULN2075B | STMicroelectronics

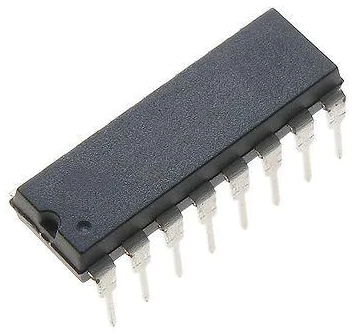

Bipolar junction transistor, NPN, 1.5 A, 80 V, THT, PDIP-16, ULN2075B
Unit Price (€ / pc.)
3.4034 € *
Standard delivery time from the manufacturer is: 40 Weeks
Darlington switch, ULN2075B, STMicroelectronics
Designed to interface logic to a wide variety of high current, high voltage loads, this device contains four NPN Darlington switches delivering up to 1.5 A with a specified minimum breakdown of 50 V and a sustaining voltage of 35 V measured at 100 mA.
Features
- Minimum breakdown
- Sustaining voltage
- Isolated Darlington pinout
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 150 °C | |
| Saturation voltage | 1.3 V | |
| Collector current | 1.5 A | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| max.voltage between collector and emitter Vceo | 80 V | |
| Enclosure | PDIP-16 | |
| Version | NPN |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Bar with 25 pieces |
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
