TIP3055 | STMicroelectronics

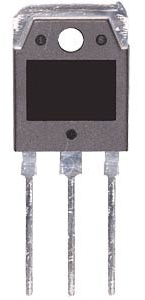

Bipolar junction transistor, NPN, 15 A, 60 V, THT, TO-247, TIP3055
Unit Price (€ / pc.)
1.0186 € *
Available: 161 pcs.
Available in 5 Days: 1,560 pcs. - if ordered today
Total Price:
1.02 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0186 €
100 pcs.
0.9056 €
*incl. VAT plus shipping costs
Subject to prior sale
Complementary transistor, TIP3055, STMicroelectronics
This device is suitable for audio, power linear and switching applications.
Features
- Low collector-emitter saturation voltage
- Complementary NPN-PNP transistors
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Max DC amplification | 70 mA | |
| Assembly | THT | |
| Enclosure | TO-247 | |
| Rated current | 15 A | |
| max.voltage between collector and base Vcbo | 100 V | |
| Version | NPN | |
| min. operating temperature | -65 °C | |
| Transit frequency fTmin | 3 MHz | |
| Min DC gain | 20 mA | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and emitter Vceo | 60 V | |
| Collector current | 15 A | |
| Power dissipation | 90 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | BE |
| Customs tariff number | 85412900 |
| Original Packaging | Bar with 30 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
