TIP122 | STMicroelectronics

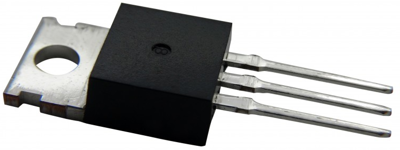

Bipolar junction transistor, NPN, 5 A, 100 V, THT, TO-220, TIP122
Unit Price (€ / pc.)
0.2678 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
0.27 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2678 €
50 pcs.
0.2487 €
250 pcs.
0.2297 €
*incl. VAT plus shipping costs
Subject to prior sale
NPN transistor, TIP122, STMicroelectronics
This transistor shows exceptional high gain performance coupled with very low saturation voltage. It is suitable for general purpose linear and switching applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Saturation voltage | 2 V | |
| Min DC gain | 1000 mA | |
| Enclosure | TO-220 | |
| Collector current | 5 A | |
| Power dissipation | 65 W | |
| max. operating temperature | 150 °C | |
| Assembly | THT | |
| min. operating temperature | -65 °C | |
| Version | NPN | |
| Rated current | 5 A | |
| max.voltage between collector and emitter Vceo | 100 V | |
| max.voltage between collector and base Vcbo | 100 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85412900 |
| Original Packaging | Bar with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
