BUV48A | STMicroelectronics

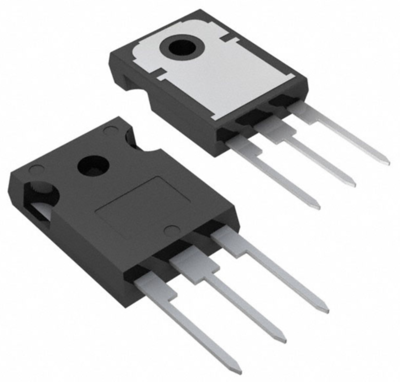

Bipolar junction transistor, NPN, 15 A, 450 V, THT, TO-247, BUV48A
Unit Price (€ / pc.)
3.2725 € *
Available in 5 Days: 300 pcs. - if ordered today
High voltage transistor, BUV48A, STMicroelectronics
This device is a multiepitaxial NPN transistor mounted in TO-247 plastic package. It is intended for switching and industrial applications from single and three-phase mains.
Features
- High current capability
- Fast switching speed
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 150 °C | |
| Rated current | 15 A | |
| max.voltage between collector and base Vcbo | 1000 V | |
| min. operating temperature | -65 °C | |
| Assembly | THT | |
| max.voltage between collector and emitter Vceo | 450 V | |
| Collector current | 15 A | |
| Saturation voltage | 5 V | |
| Transit frequency fTmin | 5 MHz | |
| Version | NPN | |
| Enclosure | TO-247 | |
| Power dissipation | 125 W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85412900 |
| MSL | MSL 1 |
| Original Packaging | Bar with 30 pieces |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
