BDX54C | STMicroelectronics

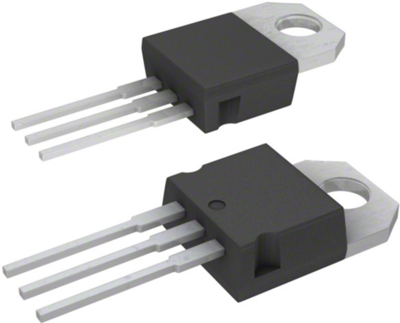

Bipolar junction transistor, PNP, 8 A, 100 V, THT, TO-220, BDX54C
Unit Price (€ / pc.)
0.8568 € *
Available: 130 pcs.
Available in 5 Days: 2,300 pcs. - if ordered today
Total Price:
0.86 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8568 €
10 pcs.
0.6069 €
100 pcs.
0.5236 €
500 pcs.
0.4522 €
1000 pcs.
0.4165 €
*incl. VAT plus shipping costs
Subject to prior sale
Complementary transistor, BDX54C, STMicroelectronics
This product is suitable as audio amplifier, linear and switching industrial equipment.
Features
- Good linearity
- High frequency
- Monolithic darlington configuration with integrated antiparallel collector-emitter diode
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Transit frequency fTmin | 20 MHz | |
| max. operating temperature | 150 °C | |
| Saturation voltage | 2 V | |
| Min DC gain | 750 mA | |
| Assembly | THT | |
| max.voltage between collector and emitter Vceo | 100 V | |
| min. operating temperature | -65 °C | |
| max.voltage between collector and base Vcbo | 100 V | |
| Enclosure | TO-220 | |
| Collector current | 8 A | |
| Version | PNP | |
| Rated current | 8 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Original Packaging | Bar with 50 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
