L5973D | STMicroelectronics

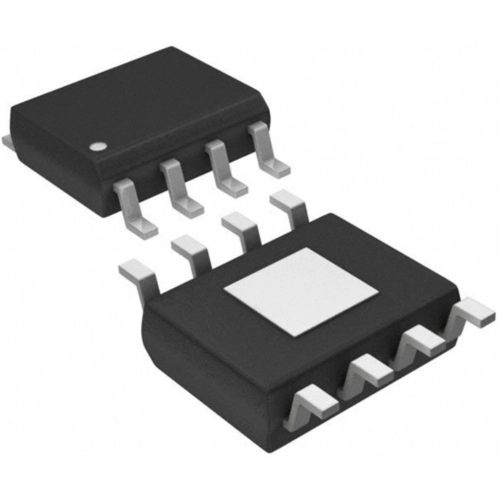

Voltage regulators, 2.5 A, HSOP-8, STMicroelectronics L5973D
Order No.: 41S1066
EAN: 4099879090089
MPN:
L5973D
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.2491 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
2.25 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2491 €
10 pcs.
2.1777 €
25 pcs.
2.0944 €
100 pcs.
2.0230 €
250 pcs.
1.8802 €
*incl. VAT plus shipping costs
Subject to prior sale
Switching regulator, L5973D, STMicroelectronics
The L5973D is a step down monolithic power switching regulator with a minimum switch current limit of 2.5 A so it is able to deliver more than 2 A DC current to the load depending on the application conditions. The device uses an internal P-channel D-MOS transistor as switching element to minimize the size of the external components. An internal oscillator fixes the switching frequency at 250 kHz. Pulse by pulse current limit with the internal frequency modulation offers an effective constant current short circuit protection.
Features
- Protection against feedback disconnection
- Thermal shutdown
- Low dropout operation: 100 % duty cycle
- Zero load current operation
- Adjustable soft-start time
Applications
- Consumer: STB, DVD, TV, VCR, car radio, LCD monitors
- Networking: XDSL, modems, DC-DC modules
- Computer: printers, audio/graphic cards, optical storage, hard disk drive
- Industrial: chargers, car battery, DC-DC converters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Input voltage | 36 V | |
| Enclosure | HSOP-8 | |
| Assembly | SMD | |
| max. operating temperature | 150 °C | |
| Output current | 2.5 A | |
| Input voltage AC | 4.4-36 V | |
| min. operating temperature | -40 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| MSL | MSL 3 |
| Original Packaging | Bar with 100 pieces |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
