01420.2-00 | STEGO

Smart sensor, 24 VDC, 0 to 100% RH, 01420.2-00

Order No.: 80H7901
EAN: 4251823450404
MPN:
01420.2-00
Series: CSS 014

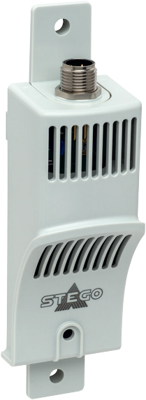

01420.2-00 STEGO Temperature, Moisture Sensors Image 1

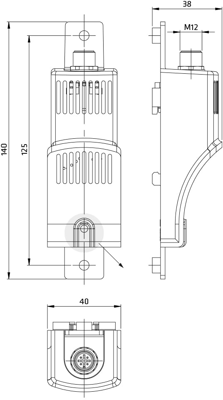

01420.2-00 STEGO Temperature, Moisture Sensors Image 2
Image may differ
Unit Price (€ / pc.)
214.2357 € *
Available: 2 pcs.
Total Price:
214.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
214.2357 €

Smart sensor analog, 01420.2-00, STEGO

The compact smart sensor 01420.2-00 electronically records temperature and humidity and converts the measured data into a standardized analog 4-20 mA signal. The converted value signals can be utilized or further processed by a control or monitoring unit, e.g. a PLC control. The smart sensor is suitable for installation inside and outside the enclosure, even in harsh environmental conditions as can be found in the wind power industry: in shielded outdoor areas and exposed to vibrations.

Features

  • Analog interface
  • Small size
  • Easy clip and/or screw fixing
  • Quick connection (M12 plug-in connector)
  • High accuracy
  • Large temperature and humidity range
Technical specifications
Interfaces IO-Link
Assembly Clip/screw mounting
Shell size 140 x 40 x 38 mm
Version smart sensor
Voltage 24 VDC
min. operating temperature -40 °C
Accuracy 0 to 100% RH
max. operating temperature 70 °C
Function temperature and humidity measurement
Number of pins 4
Logistics
Country of origin DE
Customs tariff number 90328900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
