01884.0-01 | STEGO

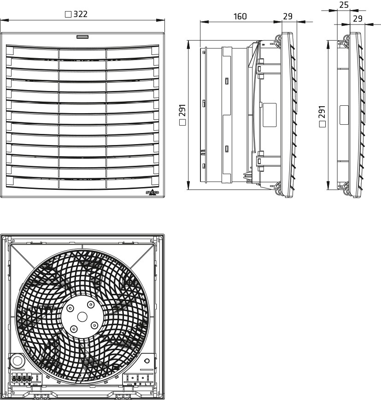

Filter fan, 230 V, 322 x 322 x 160 mm, 1010 m³/h, 70 dB, ball bearing, STEGO 01884.0-01
Unit Price (€ / pc.)
253.2201 € *
Standard delivery time from the manufacturer is: 2 Weeks

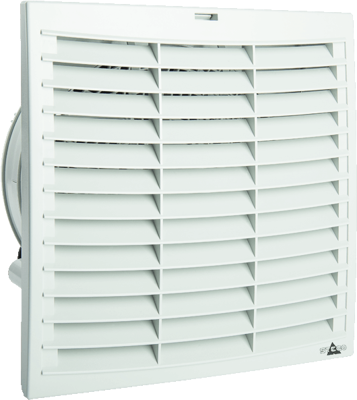

Filter fan plus, 01884.0-01, STEGO
Filter fan is used to provide an optimum climate in enclosures and cabinets with electrical/electronic components. The interior temperature of an enclosure can be reduced by channelling cooler filtered outside air into the enclosure thus expelling heated internal air. The resulting airflow prevents formation of localised hot pockets in installations and protects electronic components from overheating.
Features
- New air-flap outlet technology for high airflow
- One filter mat
- Easy mounting
- Two fan speeds
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 322 mm | |
| Degree of protection (IP) | IP54 | |
| Sound pressure level | 70 db | |
| Depth | 160 mm | |
| Rated voltage | 230 V | |
| Width | 322 mm | |
| Type of bearing | ball bearing | |
| Volume flow | 1010 m³/h |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145100 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
