01881.1-00 | STEGO

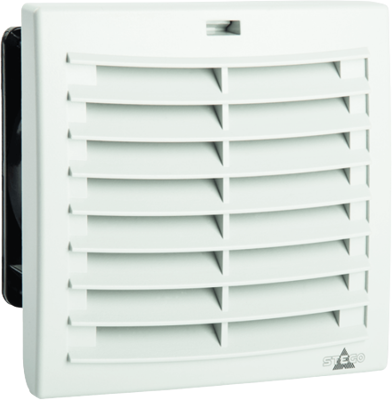

Filter fan, 48 V, 152 x 152 x 79 mm, 125 m³/h, 56 dB, ball bearing, STEGO 01881.1-00

Order No.: 80H7930
EAN: 4251823454655
MPN:
01881.1-00
Series: FPO 018
01881.1-00 STEGO Panel-Mount Fans Image 1
01881.1-00 STEGO Panel-Mount Fans Image 2
Image may differ
Unit Price (€ / pc.)
80.2417 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
80.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
80.2417 €

Filter fan plus, 01881.1-00, STEGO

Filter fan is used to provide an optimum climate in enclosures and cabinets with electrical/electronic components. The interior temperature of an enclosure can be reduced by channelling cooler filtered outside air into the enclosure thus expelling heated internal air. The resulting airflow prevents formation of localised hot pockets in installations and protects electronic components from overheating.

Features

  • New air-flap outlet technology for high airflow
  • One filter mat
  • Easy mounting
Technical specifications
Degree of protection (IP) IP54

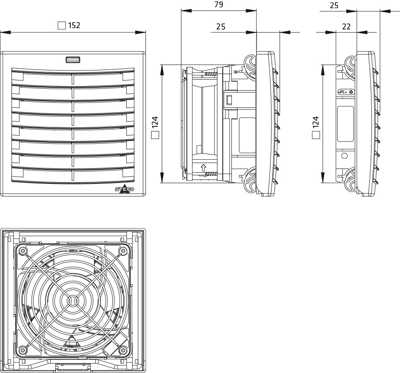

Depth 79 mm
Sound pressure level 56 db
Volume flow 125 m³/h
Width 152 mm
Height 152 mm
Type of bearing ball bearing
Rated voltage 48 V
Logistics
Country of origin DE
Customs tariff number 84145100
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
