01880.2-00 | STEGO
Filter fan, 24 V, 120 x 120 x 66 mm, 31 m³/h, 48 dB, ball bearing, STEGO 01880.2-00
Unit Price (€ / pc.)
72.9470 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
72.95 € *
Price list
Quantity
Price per unit*
1 pcs.
72.9470 €
2 pcs.
71.3405 €
5 pcs.
67.1160 €
10 pcs.
61.0470 €
*incl. VAT plus shipping costs
Subject to prior sale

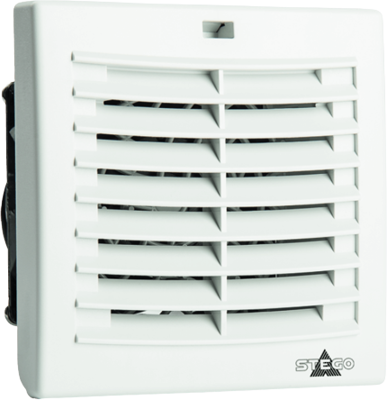

Filter fan plus, 01880.2-00, STEGO
Filter fan is used to provide an optimum climate in enclosures and cabinets with electrical/electronic components. The interior temperature of an enclosure can be reduced by channelling cooler filtered outside air into the enclosure thus expelling heated internal air. The resulting airflow prevents formation of localised hot pockets in installations and protects electronic components from overheating.
Features
- New air-flap outlet technology for high airflow
- One filter mat
- Easy mounting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 66 mm | |
| Rated voltage | 24 V | |
| Volume flow | 31 m³/h | |
| Sound pressure level | 48 db | |
| Type of bearing | ball bearing | |
| Degree of protection (IP) | IP54 | |
| Height | 120 mm | |
| Width | 120 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145100 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
