01870.2-30 | STEGO
Filter fan, 24 V, 120 x 120 x 59 mm, 22 m³/h, 49 dB, ball bearing, STEGO 01870.2-30
Unit Price (€ / pc.)
66.3782 € *
Standard delivery time from the manufacturer is: 2 Weeks

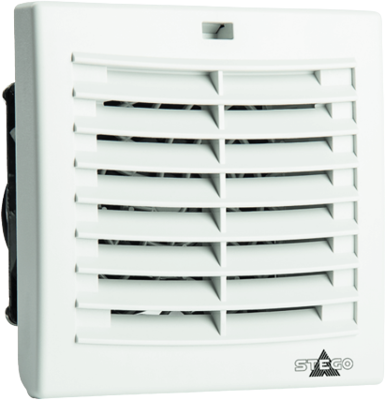

Filter fan plus, 01870.2-30, STEGO
Filter fan is used to provide an optimum climate in enclosures and cabinets with electrical/electronic components. The interior temperature of an enclosure can be reduced by channelling cooler filtered outside air into the enclosure thus expelling heated internal air. The resulting airflow prevents formation of localised hot pockets in installations and protects electronic components from overheating.
Features
- New air-flap outlet technology for high airflow
- One filter mat
- Easy mounting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP54 | |
| Volume flow | 22 m³/h | |
| Rated voltage | 24 V | |
| Type of bearing | ball bearing | |

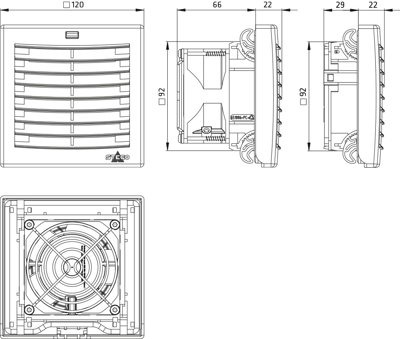

| Width | 120 mm | |
| Height | 120 mm | |
| Depth | 59 mm | |
| Sound pressure level | 49 db |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145100 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
