02520.1-01 | STEGO

LED switch cabinet light, 9 W, 230 V, 510 lm, 02520.1-01

Order No.: 80H7946
EAN: 4251823458028
MPN:
02520.1-01
Series: SL 025
02520.1-01 STEGO Luminaires and Light Fixtures
Image may differ
Unit Price (€ / pc.)
91.8799 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
91.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
91.8799 €

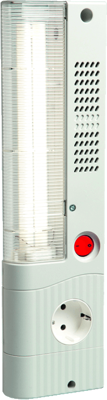

Slimline lamp, 02520.1-01, STEGO

The flat slimline luminaire 02520.1-01 with on/off switch is ideally suited for use in cabinets and enclosures with electrical/electronic components with high component density. The luminaire can be mounted in any desired position in steel cabinets without any mounting effort.

Features

  • Slim casing
  • Electronic ballast
  • Energy saving lamp
  • On/Off switch
  • With magnetic holder
  • With socket
Technical specifications
Filter Property Value
Luminous flux 510 lm
Width 40 mm
Colour gray
Degree of protection (IP) IP20
Power 9 W
Length 345 mm
max. operating temperature 70 °C
Rated voltage 230 V
min. operating temperature -45 °C
average nominal life 10000 h
Version light with magnet, switch and socket
Height 91 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 94054940
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
