01925.0-01 | STEGO
Fan, plastic, (W x H x D) 132 x 75 x 60 mm, black, 01925.0-01
Order No.: 80H7860
EAN: 4099889578300
MPN:
01925.0-01
Stegojet Einbl.Schraub. SJ 019
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
88.9168 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
88.92 € *
Price list
Quantity
Price per unit*
1 pcs.
88.9168 €
5 pcs.
84.4781 €
10 pcs.
80.0394 €
*incl. VAT plus shipping costs
Subject to prior sale

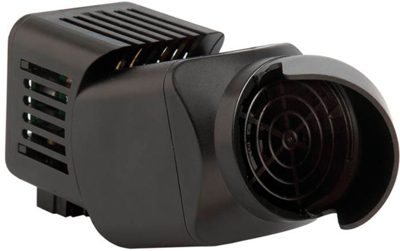

Fan, 01925.0-01, STEGO
The STEGOJET is a compact, powerful built-in-fan. It allows precise cooling of heat sources and the air flow prevents formation of heat pockets. Its design offers a maximum rotation range with an air output in almost any direction. On one hand the dual clip system (two clips in a 90° angle) allows four different positions on a DIN rail, while on the other hand the hinge in the housing can be moved in a 40° angle. The airflow at the air outlet can also be directed in a 45° angle and the air duct can be turned 360°.
Features
- Prevents heat pockets
- Compact design
- Quick connection

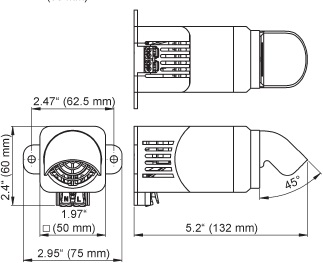

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | fan | |
| Material | plastic | |
| Width | 132 mm | |
| Height | 75 mm | |
| Depth | 60 mm | |
| Colour | black | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
