01351.0-00 | STEGO

Door contact switch, Form B (N/C), plastic, (W x H x D) 64 x 87 x 30 mm, gray/black, 01351.0-00

Order No.: 80H7864
EAN: 4099889578324
MPN:
01351.0-00
Türkontaktsch. Öffner DS 013

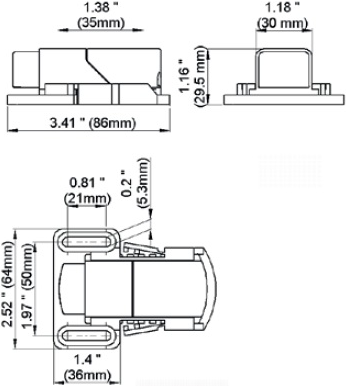

01351.0-00 STEGO Accessories for Enclosures Image 1

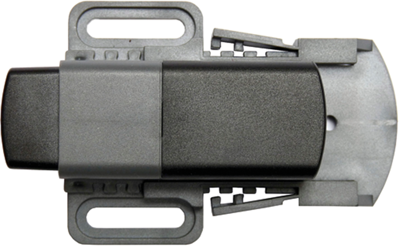

01351.0-00 STEGO Accessories for Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
27.5604 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
27.56 € *
Price list
Quantity
Price per unit*
1 pcs.
27.5604 €
5 pcs.
26.2038 €
10 pcs.
24.8115 €
*incl. VAT plus shipping costs
Subject to prior sale

Door contact switch, 01351.0-00, STEGO

The door switch monitors the position of cabinet doors. It can be used for switching a light when opening a door (NC), or to activate a fan when closing a door (NO). The wide mechanical adjustment range of the door switch DS 013 offers versatile application areas: the housing is adjustable within a 35 mm range, while the screw flange with a slotted hole offers an additional 21 mm. The switching travel of the switch itself is another 8 mm.

Features

  • Adjustable positioning without tools
  • High switching capacity
  • Double strain relief
  • Suitable for lamp LED 025
Technical specifications
Colour gray/black
Degree of protection (IP) IP20
Depth 30 mm
Width 64 mm
Height 87 mm
Product type door contact switch
Version Form B (N/C)
Material plastic
Logistics
Country of origin FR
Customs tariff number 85365007
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
