01231.1-01 | STEGO

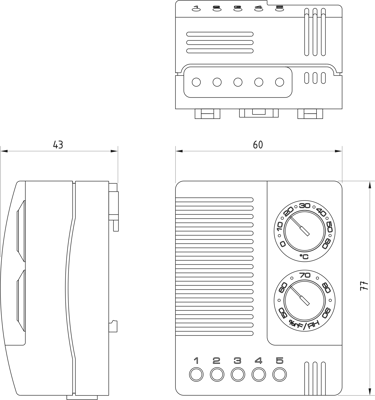

Hygrotherm with external sensor, 2 m, 24-48 V, 0-60 °C, 50-90 % rF, plastic, (W x H x D) 60 x 77 x 43 mm, light gray, 01231.1-01
Unit Price (€ / pc.)
175.7987 € *
Standard delivery time from the manufacturer is: 2 Weeks

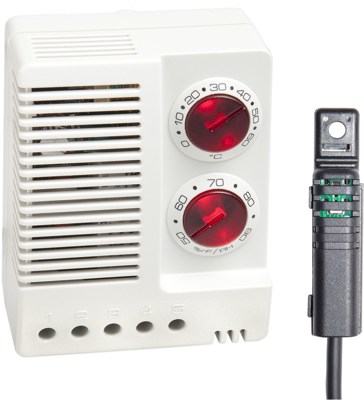

Electronic hygrotherm, 01231.1-01, STEGO
The electronic hygrotherm senses the ambient temperature and relative humidity in an enclosure with electric/electronic components and turns on a heater (or alternatively a fan) at either set point, helping prevent the formation of condensation in the enclosure. Due to its wide voltage range the hygrotherm can be utilised anywhere in the world. The LED integrated in the adjustment knob on the active controller is lit when the connected device is in operation. The version with an external sensor can be installed anywhere in the control cabinet and enables precise measurement.
Features
- High switching capacity
Technical specifications
Colour | light gray | |
Degree of protection (IP) | IP20 | |
Type of mounting | clip fastening | |
Depth | 43 mm | |
Width | 60 mm | |
Height | 77 mm | |
Product type | hygrotherm with external sensor | |
Version | 2 m, 24-48 V, 0-60 °C, 50-90 % rF | |
Material | plastic |
Download
Logistics
Country of origin | DE |
Customs tariff number | 90328900 |
Compliance
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
RoHS conform | Yes |
