01231.1-00 | STEGO

Hygrotherm with external sensor, 1 m, 24-48 V, 0-60 °C, 50-90 % rF, plastic, (W x H x D) 60 x 77 x 43 mm, light gray, 01231.1-00

Order No.: 80H7891
EAN: 4251823449781
MPN:
01231.1-00
Series: ETF 012

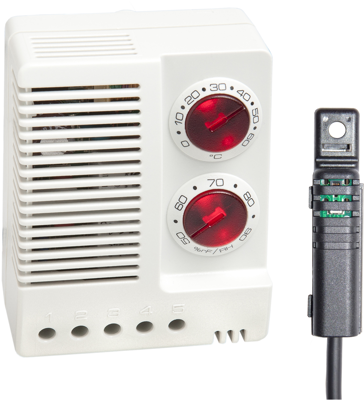

01231.1-00 STEGO Accessories for Enclosures Image 1
01231.1-00 STEGO Accessories for Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
172.5619 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
172.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
172.5619 €

Electronic hygrotherm, 01231.1-00, STEGO

The electronic hygrotherm senses the ambient temperature and relative humidity in an enclosure with electric/electronic components and turns on a heater (or alternatively a fan) at either set point, helping prevent the formation of condensation in the enclosure. Due to its wide voltage range the hygrotherm can be utilised anywhere in the world. The LED integrated in the adjustment knob on the active controller is lit when the connected device is in operation. The version with an external sensor can be installed anywhere in the control cabinet and enables precise measurement.

Features

  • High switching capacity
Technical specifications
Colour light gray
Degree of protection (IP) IP20
Type of mounting clip fastening
Depth 43 mm
Width 60 mm
Height 77 mm
Product type hygrotherm with external sensor
Version 1 m, 24-48 V, 0-60 °C, 50-90 % rF
Material plastic
Logistics
Country of origin DE
Customs tariff number 90328900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
