01176.0-00 | STEGO

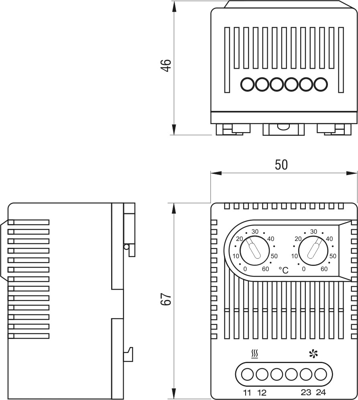

Thermostat, Form A (N/O)/Form A (N/O), 0-60 °C/0-60 °C, plastic, (W x H x D) 50 x 67 x 46 mm, light gray, 01176.0-00
Unit Price (€ / pc.)
27.7746 € *
Available: 1 pcs.

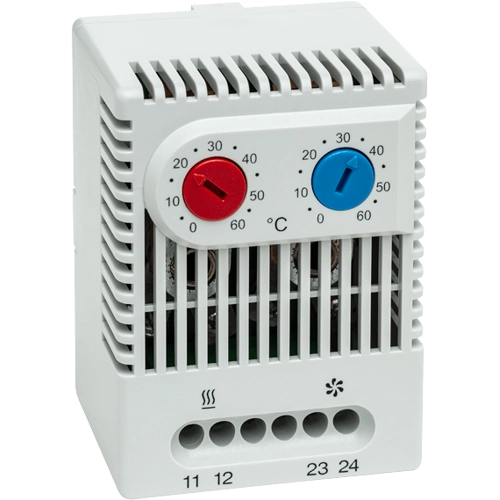

Dual thermostat, 01176.0-00, STEGO
Thermostat (contact breaker, normally closed) for regulating heaters. The contact opens when temperature is rising. Thermostat (contact maker, normally open) for regulating filter fans and heat exchangers or switching signal devices when temperature limit has been exceeded. The contact closes when temperature is rising.
Features
- Separate adjustable temperatures
- High switching capacity
- Clip fixing
- Terminals easily accessible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | thermostat | |
| Version | Form A (N/O)/Form A (N/O), 0-60 °C/0-60 °C | |
| Material | plastic | |
| Width | 50 mm | |
| Height | 67 mm | |
| Depth | 46 mm | |
| Colour | light gray | |
| Type of mounting | clip fastening | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 90321080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
