01172.0-01 | STEGO

Thermostat, Form B (N/C)/Form A (N/O), 32-140 °F/32-140 °F, plastic, (W x H x D) 50 x 67 x 46 mm, light gray, 01172.0-01

Order No.: 80H7885
EAN: 4251823449170
MPN:
01172.0-01
Series: ZR 011
01172.0-01 STEGO Accessories for Enclosures Image 1
01172.0-01 STEGO Accessories for Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
31.8563 € *
Available: 1 pcs.
Total Price:
31.86 € *
Price list
Quantity
Price per unit*
1 pcs.
31.8563 €
5 pcs.
29.9404 €
15 pcs.
28.7980 €
*incl. VAT plus shipping costs
Subject to prior sale

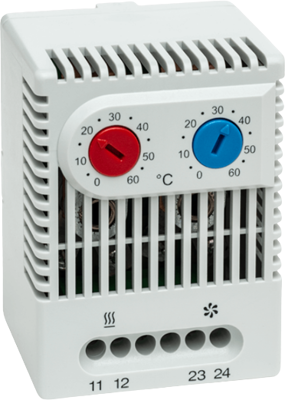

Dual thermostat, 01172.0-01, STEGO

Thermostat NC (normally closed) and thermostat NO (normally open) in a single enclosure. Unlike thermostats with change-over contact, the dual thermostat switches independently. This allows heaters and coolers to be switched in different temperature ranges.

Features

  • Snap-action contact enables independent switching
  • Temperatures can be set separately
  • High switching capacity
  • Clip-mounted
Technical specifications
Colour light gray
Degree of protection (IP) IP20
Type of mounting clip fastening

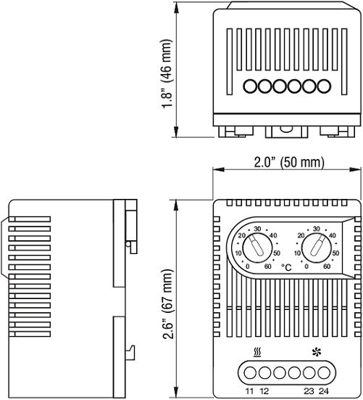

Depth 46 mm
Width 50 mm
Height 67 mm
Product type thermostat
Version Form B (N/C)/Form A (N/O), 32-140 °F/32-140 °F
Material plastic
Logistics
Country of origin FR
Customs tariff number 90321080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
