01170.0-00 | STEGO
Thermostat, Form C (N/O N/C) 5-60 °C, plastic, (W x H x D) 50 x 67 x 38 mm, light gray, 01170.0-00
Order No.: 80H7880
EAN: 4099889578393
MPN:
01170.0-00
Thermostat FZK 011, 5°C/60°C
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
34.2958 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
34.30 € *
Price list
Quantity
Price per unit*
1 pcs.
34.2958 €
5 pcs.
32.2371 €
15 pcs.
30.9995 €
50 pcs.
29.6310 €
*incl. VAT plus shipping costs
Subject to prior sale

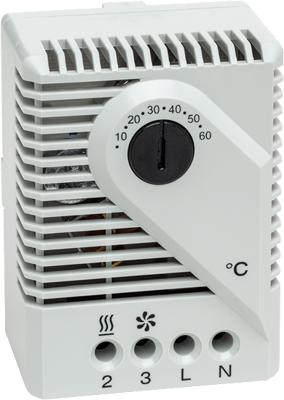

Thermostat, 01170.0-00, STEGO
The mechanical thermostat is used for controlling heating and cooling equipment, filter fans or signal devices. The thermostat registers the surrounding air and can switch both inductive and resistive loads via snap-action contact. Functionality: The temperature setting on the scale equals to the upper switch point, which means that the NC contact opens. The temperature setting minus switch temperature difference (and tolerances) equals to the lower switch point, which means that the NC contact closes.
Features
- Adjustable temperature
- High switching capacity
- Clip fixing
- Small hysteresis

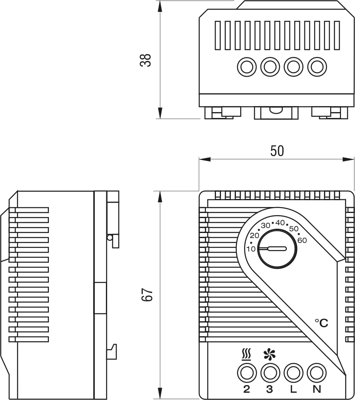

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | thermostat | |
| Version | Form C (N/O N/C) 5-60 °C | |
| Material | plastic | |
| Width | 50 mm | |
| Height | 67 mm | |
| Depth | 38 mm | |
| Colour | light gray | |
| Type of mounting | clip fastening | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 90321080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
