2216.10 | Statron
Function generator, 2216.10
Order No.: 20K745
EAN: 4099891461386
MPN:
2216.10
Unit Price (€ / pc.)
303.7237 € *
Standard delivery time from the manufacturer is: 1 Week

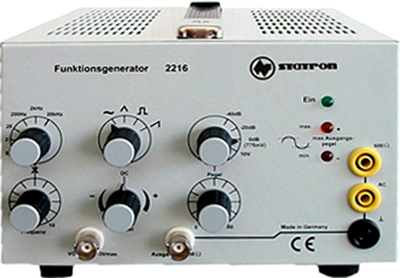

Function generators, type Statron 2216.10.
Frequency bandwidth: 0.2 Hz to 200 kHz, 6 ranges with linear adjustment, generates sine-wave, triangle, square or sawtooth signals. For testing control circuits and analog/digital circuits, determination of the frequency profile of AF amplifiers/filters/speakers. Operating voltage: 230 V/50 Hz. Current consumption: max. 30 mA. Output voltage: 0 to 13 Vpp, linear adjustment feature. Attenuator: 0/20/40 dB. DC offset: ±5.0 V. Degree of protection: IP 30. Dimensions: 210 x 120 x 180 mm.
Type: 2216.10, function generator
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Frequency range | 0.2 Hz-200 kHz | |
| Display | LED | |
| Waveforms | sinus, square, triangle |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85043121 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
