2239.1 | Statron
DC converter, 11-14 VDC, 1 output, 24 VDC, 2239.1
Unit Price (€ / pc.)
129.5672 € *
Available: 3 pcs.
Total Price:
129.57 € *
Price list
Quantity
Price per unit*
1 pcs.
129.5672 €
3 pcs.
125.6759 €
10 pcs.
121.3443 €
25 pcs.
118.1194 €
*incl. VAT plus shipping costs
Subject to prior sale

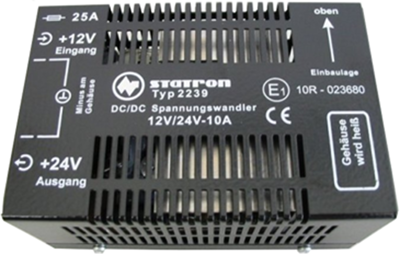

DC converters, type Statron 2239.1.
Clock mode unit, short circuit-proof, no electrical isolation, voltage doubler, also suitable for wall mounting; output current: 10 A. Vout stability on Vin fluctuation: proportional to Vin. Residual ripple: 25 mV. Open-circuit current consumption: 30 mA. Current consumption at full load: 22 A. Fuse: 25 A. Settling time: 1.5 ms. Operating temperatures: 0 to +35 °C. Dimensions: W 150, H 85, D 70 mm. Weight: 600 g. Minus pole: connected to housing. Color: black, RAL 9005. Degree of protection: IP 30. Connections: 6.3 mm tabs.
Type: 2239.1, DC converter, input 11 to 14 V, output 24 V
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 70 mm | |
| Length | 150 mm | |
| Input voltage AC | 11-14 VDC | |
| Output current | 10 A | |
| Number of outputs | 1 | |
| Height | 85 mm | |
| Output voltage DC | 24 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85043121 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
