5340.92 | Statron
Laboratory power supply, 30 VDC, outputs: 2 (5 A), 0 to 5 A, 300 W, 230 VAC, 5340.92
Order No.: 24K7145
EAN: 4099891481346
MPN:
5340.92
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
870.8063 € *
Standard delivery time from the manufacturer is: 1 Week

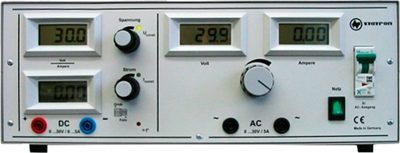

Power supplies with AC/DC output, type Statron 5340.92.
Desktop device; Features: linear control loop stabilized for DC, short-circuit proof, ungrounded output, fan cooling. AC and DC output voltage: 0 to 30 V. DC output current: 0 to 5.0 A (adjustable). AC output current: 5.0 A. DC voltage stability: 20 mV on mains +6.0/–7.0 %, 20 mV on load 0 to 100 %. Residual ripple: 2.0 m. Settling time: 100 µs. DC characteristic: square wave, AC non-stabilized. Input voltage: 230 V +6.0 %/–10 % (48 to 62 Hz). Operating temperatures: 0 to +35 °C. Safety class: I. Safety: to EN 61010, EN 61558-2-4. EMC: to EN 61000-6-3, EN 61000-6-2. Dimensions: W 360, H 150, D 230 mm. Weight: 12.5 kg
Type: 5340.92, power supply
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 30 VDC | |
| Output current | 5 A | |
| Range of Output Currence | 0 to 5 A | |
| Power | 300 W | |
| Input voltage AC | 230 VAC | |
| Number of outputs | 2 | |
| Width | 360 mm | |
| Height | 150 mm | |
| Depth | 230 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043121 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
