5311.2 | Statron
Laboratory power supply, 300 VDC, outputs: 3 (5 A/0.5 A), 150 W, 230 VAC, 5311.2
Order No.: 24K7142
EAN: 4099891481339
MPN:
5311.2
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1,065.9187 € *
Standard delivery time from the manufacturer is: 2 Weeks

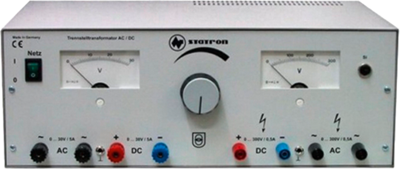

Power supplies with AC/DC output, type Statron 5311.
Desktop device with isolating variable transformer and thermal cutout; Input voltage: 230 V +6.0/–10 % (50 Hz). Operating temperatures: 0 to +50 °C. Safety class: I. Degree of protection: IP 30. Safety: EN 61010, EN 61558-2-4. EMC: EN 61000-6-3, EN 61000-6-2.
With 0 to 300 V output, type 5311.2.
AC and DC output voltage/current: 0 to 30 V/5.0 A and 0 to 300 V/0.5 A. Power: 150 W. Dimensions: W 360, H 140, D 250 mm. Weight: 15 kg
Type: 5311.2, AC/DC adapter
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 300 VDC | |
| Output current | 5 A | |
| Output current 2 | 0.5 A | |
| Power | 150 W | |
| Input voltage AC | 230 VAC | |
| Number of outputs | 3 | |
| Width | 360 mm | |
| Height | 140 mm | |
| Depth | 250 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043121 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
