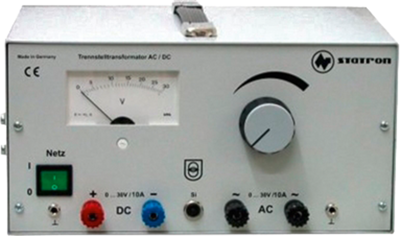

5311.1 | Statron
Laboratory power supply, 30 VDC, outputs: 3 (10 A), 230 VAC, 5311.1
Order No.: 24K7140
EAN: 4099891481322
MPN:
5311.1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
606.2931 € *
Standard delivery time from the manufacturer is: 2 Weeks
Power supplies with AC/DC output, type Statron 5311.
Desktop device with isolating variable transformer and thermal cutout; Input voltage: 230 V +6.0/–10 % (50 Hz). Operating temperatures: 0 to +50 °C. Safety class: I. Degree of protection: IP 30. Safety: EN 61010, EN 61558-2-4. EMC: EN 61000-6-3, EN 61000-6-2.
With 0 to 30 V output, type 5311.1.
AC and DC output voltage/current: 0 to 30 V/10 A. Power: 300 W. Dimensions: W 260, H 140, D 250 mm. Weight: 15 kg
Type: 5311.1, AC/DC adapter
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 30 VDC | |
| Output current | 10 A | |
| Input voltage AC | 230 VAC | |
| Number of outputs | 3 | |
| Width | 260 mm | |
| Height | 140 mm | |
| Depth | 250 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043121 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
