3252.3 | Statron

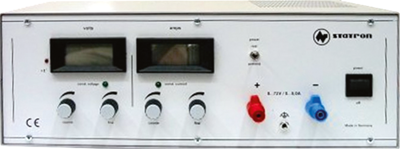

Laboratory power supply, 72 VDC, outputs: 3 (4.25 A), 0 to 5 A, 360 W, 230 VAC, 3252.3
NCNR (non cancelable / non returnable)
Power supplies or DC voltage regulators, type Statron 3252.
Desktop unit. Linear control. Short circuit-proof. Auto-mode CV/CC. Output data preset. Voltage/current control, separate displays for current and voltage. Ducted cooling. Ungrounded output; Trimmer output voltage/current: 270° potentiometer for rough and fine adjustment (1:10). Settling time on 10 to 100 % load: 200 µs. Adjustment resolution: 0.05 %. Characteristic curve: voltage/current. Voltage/current display: LCD, 3 1/2-digit, 13 mm. Operating temperatures: 0 to +35 °C. Input voltage: 230 V +6.0/–10 %, 48 to 62 Hz. Test voltages: input to ground 1.5 kV, primary to secondary circuit 1.5 kV, output to ground 500 V. Safety class I. Dimensions: W 372, H 134, D 252 mm. Weight: approx. 12.6 kg.
With output voltage range 0 to 72 VDC, type 3252.3.
Output current: 0 to 5.0 A. Stability V/I: 1.2 mV/1.0 mA with mains +6.0/–7.0 %, 3.6 mV/2.0 mA with load 0 to 100 %. Residual ripple V/I: 1.2 mV/3.0 mA. Output sockets: 4.0 mm safety jacks.
Type: 3252.3, AC/DC adapter
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 72 VDC | |
| Output current | 4.25 A | |
| Range of Output Currence | 0 to 5 A | |
| Power | 360 W | |
| Input voltage AC | 230 VAC | |
| Number of outputs | 3 | |
| Width | 372 mm | |
| Height | 134 mm | |
| Depth | 252 mm |
| Property | Value |
|---|---|
| Customs tariff number | 85043121 |
| Country of origin | DE |
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
