3250.1 | Statron

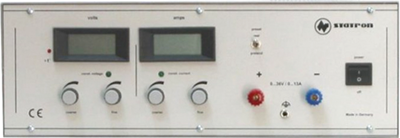

Laboratory power supply, 36 VDC, outputs: 3 (7.5 A), 0 to 7.5 A, 270 W, 230 VAC, 3250.1
NCNR (non cancelable / non returnable)
Power supplies or DC voltage regulators, type Statron 3250.
Desktop unit. Linear control loop. Short circuit-proof. Auto-mode CV/CC. Output data preset. Voltage/current control, separate displays for current and voltage. Ducted cooling. Floating potential output; Output voltage: 0 to 36 V. Output current: 0 to 7.5 (6.0) A. Voltage/current stability: 1.0 mV/1.0 mA with line voltage +6.0/–10 %, 3.0 mV/2.0 mA under 0 to 100 % load. Residual ripple, voltage/current: 1.0 mV/3.0 mA. Trimmer, output voltage/current: 270° potentiometer (1:10) for rough and fine adjustment. Settling time less than 10 to 100 % load: 200 µs. Adjustment resolution: 0.05 %, voltage/current characteristic curve. Voltage/current display: LCD, 3.5-digit, 13 mm. Operating temperatures: 0 to +35 °C. Input voltage: 230 V +6.0/–10 %, 48 to 62 Hz. Safety class: I. Degree of protection: IP 30. Dimensions: W 372, H 134, D 252 mm. Weight: approx. 10.5 kg.
Type: 3250.1, AC/DC adapter
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 36 VDC | |
| Output current | 7.5 A | |
| Range of Output Currence | 0 to 7.5 A | |
| Power | 270 W | |
| Input voltage AC | 230 VAC | |
| Number of outputs | 3 | |
| Width | 372 mm | |
| Height | 134 mm | |
| Depth | 252 mm |
| Property | Value |
|---|---|
| Customs tariff number | 85043121 |
| Country of origin | DE |
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
