3234.1 | Statron

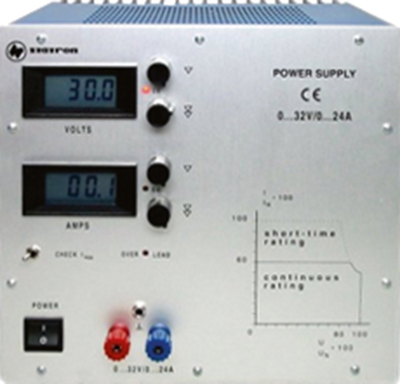

Laboratory power supply, 32 VDC, outputs: 3 (24 A), 0 to 24 A, 768 W, 230 VAC, 3234.1
Power supplies or DC voltage regulators, type Statron 3234.
Desktop unit; Features: linear control loop with triac primary regulator. Thermal overload protection. Short circuit-proof. Auto-mode CV/CC. Test key for variable current limiting (current control). Series operation of the same type of units up to max. 150 V. Ungrounded output. Output voltage: 0 to 32 V. Output current: 0 to 14.4 A/24 A to max. 20 min. Voltage/current stability: 2.0 mV/2.0 mA with line voltage +6.0/–10 %, 100 mV/20 mA on 0 to 100 % load. Residual ripple, voltage/current: 2.0 mV/200 mA. Trimmer, output voltage/current: 270° potentiometer for rough and fine adjustment. Settling time on 10 to 100 % load: max. 30 ms. Adjustment resolution: 0.1 %. Characteristic curve: voltage/current. Voltage/current display: LCD, 3.5-digit, 13 mm. Operating temperatures: 0 to +35 °C. Input voltage: 230 V +6.0/–10 %, 48 to 62 Hz. Safety class I. Dimensions: W 244, H 232, D 252 mm. Weight: approx. 12.5 kg.
Type: 3234.1, AC/DC adapter
| Filter | Property | Value |
|---|---|---|
| Depth | 252 mm | |
| Height | 232 mm | |
| Output current | 24 A | |
| Width | 244 mm | |
| Range of Output Currence | 0 to 24 A | |
| Number of outputs | 3 | |
| Power | 768 W | |
| Output voltage DC | 32 VDC | |
| Input voltage AC | 230 VAC |
| Property | Value |
|---|---|
| Customs tariff number | 85043121 |
| Country of origin | DE |
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
