3229.0 | Statron

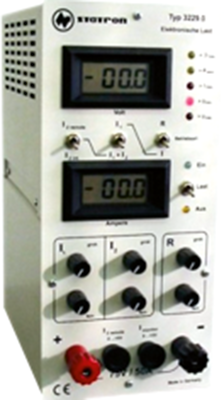

Electronic load, 800 W, 230 VAC, 3229.0
Electronic burdens, type Statron 3229.0.
Particularly suitable for testing power supplies, modules and output power stages, and for checking the condition of accumulators. With numerous electronic fuses such as polarity reversal protection and overvoltage protection for maximum safety during testing. LED displays for surge current, overload, thermal overload, polarity reversal and load disconnection let users quickly identify the cause of an automatic disconnection of an electronic load. The default resistance and current sink values can be adjusted progressively. Continuous power 400 W; Features: compact package, triggerable, load switch On/Off, short-term load capacity up to 800 W. DC voltage: 1.0 to 75 V. DC current: 7.0 mA to 50 A. Resistance: 0.05 ohm to 7.5 kohm. Slope rate: 5.0 µs. Constant current mode 1 to 2 is supported (adding mode). Analog control input for constant current mode. Monitor, 3-digit digital LCD for current and voltage. Operation: 230 V +6.0/–10 % 48 to 62 Hz. Operating temperatures: 0 to +35 °C. Cooling: speed-controlled fans. Connections: binding posts 4.0 mm. Dimensions: W 122, H 276, D 240 mm. Weight: 4.5 kg.
Type: 3229.0, electronic burden
| Filter | Property | Value |
|---|---|---|
| Power | 800 W | |
| Input voltage AC | 230 VAC | |
| Load DC voltage | 2.5 to 80 V | |
| Load direct current | 0.007 to 50 A | |
| Load resistance | 0.05 to 8000 Ω | |
| Width | 122 mm | |
| Height | 276 mm | |
| Depth | 240 mm |
| Property | Value |
|---|---|
| Customs tariff number | 85043121 |
| Country of origin | DE |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
