3225.71 | Statron

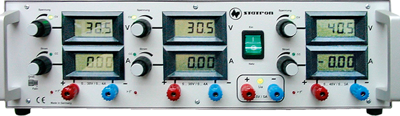

Laboratory power supply, 30 VDC, outputs: 3 (4 A/4 A/3 A), 0 to 4 A, 385 W, 230 VAC, 3225.71
NCNR (non cancelable / non returnable)
Power supplies or DC voltage regulators, type Statron 3225.71.
Quad voltage source, for series and parallel wiring, linear control with transformer switching, short circuit-proof, auto mode CV/CC, voltage and current control, separate voltage and current displays, controlled fan cooling, ungrounded output; Output voltage/current: 2 x 0 to 30 V/0 to 4.0 A, 1 x 0 to 40 V/0 to 3.0 A, 1 x 5.0 V/5.0 A. Stability: 2.0 mV/2.0 mA with line +5.0/–7.0 %, 40 mV/3.0 mA with load 0 to 100 %. Residual ripple: 2.0 mV/2.0 mA. Vo/Io trimmer: rough and fine adjustment. Dual potentiometer 270°. Adjustment resolution: 0.1 %. Characteristic: V/. V/I displays: 3.5-digit, 14 mm. Operating temperatures: 0 to 35 °C. Input voltage: 230 V +5.0/–7.0 %, 48 to 62 Hz. Safety class: I. Dimensions: 451 x 134 x 324 mm. Weight: approx. 19 kg.
Type: 3225.71, AC/DC adapter
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 30 VDC | |
| Output current | 4 A | |
| Output current 2 | 4 A | |
| Output current 3 | 3 A | |
| Range of Output Currence | 0 to 4 A | |
| Power | 385 W | |
| Input voltage AC | 230 VAC | |
| Number of outputs | 3 | |
| Width | 451 mm | |
| Height | 134 mm | |
| Depth | 324 mm |
| Property | Value |
|---|---|
| Customs tariff number | 85043121 |
| Country of origin | DE |
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
