3223.1 | Statron

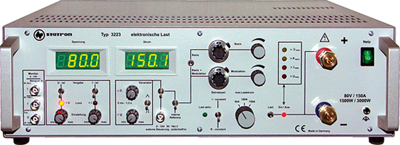

Electronic load, 3000 W, 230 VAC, 3223.1
Order No.: 24K344
EAN: 4099891480318
MPN:
3223.1
Unit Price (€ / pc.)
2,520.7413 € *
Standard delivery time from the manufacturer is: 4 Weeks
Electronic burdens, type Statron 3223.1.
For 1.0 to 80 VDC, comprehensive safety circuitry, short settling time, high long-term stability, current and voltage limiting function, analog interfaces, internal function generator; Load current range/rated power/maximum power: 10 mA to 50 A/500 W/1000 W, 20 mA to 100 A/1000 W/2000 W, 30 mA to 150 A/1500 W/3000 W. Adjustment resolution: 0.05 %. Operating voltage: 230 V, 48 to 62 Hz, 50 VA. Degree of protection: IP 30. Electrical safety: EN 61010, EN 61558-2-4. Safety class: I. EMC: EN 61000-6-3, EN 61000-6-2. Operating temperatures: +10 to +35 °C. Dimensions: 445 x 134 x 410 mm. Weight: approx. 16 kg.
Type: 3223.1, electronic burden
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 410 mm | |
| Power | 3000 W | |
| Load DC voltage | 1 to 80 V | |
| Load direct current | 0.01 to 150 A | |
| Load resistance | 0.0167 to 8000 Ω | |
| Width | 445 mm | |
| Height | 134 mm | |
| Input voltage AC | 230 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85043121 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
