2255.4 | Statron
Laboratory power supply, 24 VDC, outputs: 3 (3 A), 80 W, 230 VAC, 2255.4
Order No.: 24K7032
EAN: 4099891481100
MPN:
2255.4
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
192.4944 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
192.49 € *
Price list
Quantity
Price per unit*
1 pcs.
192.4944 €
3 pcs.
186.7229 €
10 pcs.
180.2969 €
25 pcs.
175.4893 €
*incl. VAT plus shipping costs
Subject to prior sale

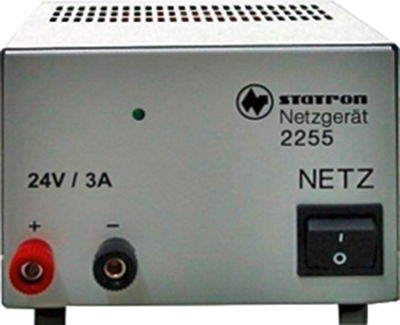

Fixed-voltage power supplies, type Statron 2255.4.
Desktop device; Features: linear control loop, short-circuit proof, ungrounded output, convection cooling. Output voltage: 24 V. Output current: 3.0 A. Voltage stability: 5.0 mV on mains +6.0/–7.0 %, 20 mV on load 0 to 100 %. Residual ripple: 90 mV. Settling time: 100 µs. Characteristic: fold back. Connection: binding posts. Input voltage: 230 V +6.0/–10 % (48 to 62 Hz). Operating temperatures: 0 to +35 °C. Safety class I. Degree of protection: IP 30. Safety: to EN61010, EN61558-2-4. EMC: EN61000-6-3, EN 61000-6-2. Dimensions: W 110, H 80, D 185 mm. Weight: 3.0 kg
Type: 2255.4, AC/DC adapter
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 24 VDC | |
| Output current | 3 A | |
| Power | 80 W | |
| Input voltage AC | 230 VAC | |
| Number of outputs | 3 | |
| Width | 110 mm | |
| Height | 80 mm | |
| Depth | 185 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043121 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
