2232.0 | Statron
Laboratory power supply, 13,8 VDC, outputs: 3 (35 A), 483 W, 230 VAC, 2232.0
Order No.: 24K7022
EAN: 4099891481087
MPN:
2232.0
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
590.5732 € *
Standard delivery time from the manufacturer is: 2 Weeks

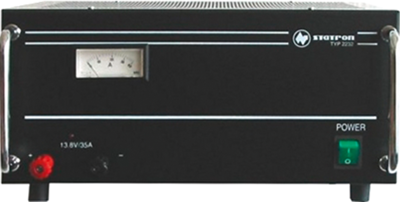

Fixed-voltage power supplies, type Statron 2232.0.
Desktop device; Features: linear control loop, short-circuit proof, ungrounded output, convection cooling, insensitive to RF interference. Output voltage: 13.8 V. Output current: 35 A. Voltage stability: 3.0 mV on mains +6.0/–7.0 %, 30 mV on load 0 to 100 %. Residual ripple: 5.0 mV. Settling time: 100 µs. Characteristic: fold-back. Display: analog for current. Connection: binding posts. Operating temperatures: 0 to +35 °C. Input voltage: 230 V +6.0/–10 % (48 to 62 Hz). Safety class: I. Degree of protection: IP 30. Safety: EN61010, EN61558-2-4, EMV: EN61000-6-3, EN61000-6-2. Dimensions: W 360, H 170, D 310 mm. Weight: 15 kg
Type: 2232.0, AC/DC adapter
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 13.8 VDC | |
| Output current | 35 A | |
| Power | 483 W | |
| Input voltage AC | 230 VAC | |
| Number of outputs | 3 | |
| Width | 360 mm | |
| Height | 170 mm | |
| Depth | 310 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043121 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
