2229.5 | Statron

Name: Laboratory power supply, 32 VDC, outputs: 3 (3 A/3 A/3 A), 0 to 3 A, 96 W, 230 VAC, 2229.5
Brand: Statron
SKU: 24K7054
Availability: InStock

Laboratory power supply, 32 VDC, outputs: 3 (3 A/3 A/3 A), 0 to 3 A, 96 W, 230 VAC, 2229.5

Order No.: 24K7054

EAN: 4099891481186

MPN:

2229.5

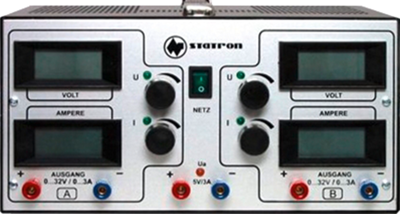

Image may differ

Key Specification:

Output voltage DC 32 VDC

Output current 3 A

Output current 2 3 A

Output current 3 3 A

Range of Output Currence 0 to 3 A

Download Datasheet Technical specifications

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)

606.2931 € *

Standard delivery time from the manufacturer is: 2 Weeks

Total Price:

606.29 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Power supplies or DC voltage regulators, type Statron 2229.5.

Desktop device with three outputs; Features: linear control loop with transformer switching, stabilized, short-circuit proof, ground-free output, voltage and current control loop, convection cooling. Input voltage: 230 VAC +6.0/–10 % (48 to 62 Hz). Output voltages: 2 x 0 to 32 VDC, infinitely variable, 1 x 5.0 VDC fixed. Output current: 2 x 0 to 3.0 A, infinitely variable, 1 x 3.0 A fixed. Voltage stability: 20 mV on mains +6.0/–10 % (5 mV on 5.0 V output), 40 mV on load 0 to 100 % (30 mV on 5.0 V). Residual ripple: 2.0 mVRMS (1.0 mVRMS on 5.0 V). Settling time: 100 µs. Display for current and voltage: 3 1/2-digit LCD, or LED for 5.0 V output. Operating temperatures: 0 to +35 °C. Safety class: I. Degree of protection: IP 30. Safety: EN61010, EN61558-2-4. EMC: EN61000-6-3, EN6100-6-2. Dimensions: W 260, H 140, D 230 mm. Weight: 8.5 kg.

Type: 2229.5, AC/DC adapter

Technical specifications

Filter	Property	Value
	Output voltage DC	32 VDC
	Output current	3 A
	Output current 2	3 A
	Output current 3	3 A
	Range of Output Currence	0 to 3 A
	Power	96 W
	Input voltage AC	230 VAC
	Number of outputs	3
	Width	260 mm
	Height	140 mm
	Depth	230 mm
