2225.2 | Statron

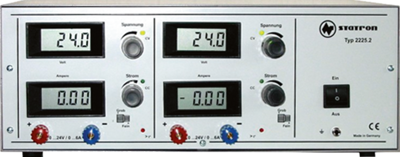

Laboratory power supply, 24 VDC, outputs: 2 (6 A/6 A), 0 to 6 A, 480 W, 230 VAC, 2225.2
Power supplies or DC voltage regulators, type Statron 2225.2.
Dual voltage power supply, from which 48 V/6.0 A or 24 V/12 A is drawn by operating it in series or parallel; Features: electronically stabilized, short circuit-proof, rough and fine regulator for adjusting voltage and current, overload protection. Cooled with integrated fan. Operation: 230 V +5.0/–7.0 % (48 to 62 Hz). Output voltage: infinitely variable 2 x 0 to 24 V. Output current: infinitely variable 2 x 0 to 6.0 A. Voltage stability: 2.0 mV on mains +5.0/–7.0 %, 50 mV on load 0 to 100 %. Residual ripple: approx. 1.0 mVRMS. Settling time: 200 µs. Current and voltage display: on 3 1/2-digit LCD. Power consumption: 460 VA. Dimensions in mm: W 360, H 150, D 230. Weight: 9.0 kg.
Type: 2225.2, power supply
| Filter | Property | Value |
|---|---|---|
| Depth | 230 mm | |
| Height | 150 mm | |
| Output current | 6 A | |
| Width | 360 mm | |
| Range of Output Currence | 0 to 6 A | |
| Output current 2 | 6 A | |
| Number of outputs | 2 | |
| Power | 480 W | |
| Output voltage DC | 24 VDC | |
| Input voltage AC | 230 VAC |
| Property | Value |
|---|---|
| Customs tariff number | 85043121 |
| Country of origin | DE |
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
