HE24-1B83-150 | Standex Electronics
Reed relay, 24 V (DC), 1 Form B (N/C), 50 W, HE24-1B83-150
Unit Price (€ / pc.)
51.4913 € *
Standard delivery time from the manufacturer is: 6 Weeks
High-voltage reed relays, type Standex-Meder HE.
For PCB mounting, with connecting cable (PTFE insulation), AWG 20/7; Contact type: 1 NO or 1 NC. Rated voltage: 24 VDC. Breaking capacity: max. 50 W. Switching voltage: max. 7500 VDC. Switching current: max. 3.0 A. On-state current: max. 5.0 A,. Contact resistance (static): max. 150 mohm. Pick-up voltage: max. 18 VDC. Release voltage: min. 3.5 VDC. Response time: (including bounce): max. 3.0 ms. Release time: max. 1.5 ms. Operating temperatures: –20 to +70 °C.
1 x NC contact.
Coil resistance: max. 1650 ohm. Rated power: 385 mW.

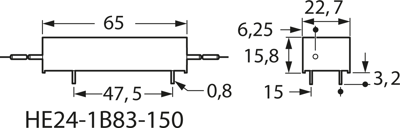

Type: HE24-1B83-150, high-voltage reed relay
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (AC) | 7.5 kV | |
| Coil voltage (DC) | 24 V | |
| Coil resistance | 1.65 kΩ | |
| switching current | 3 A | |
| Contact type | 1 Form B (N/C) | |
| Breaking capacity | 50 W | |
| Connection | stranded wires | |
| Switching Voltage (DC) | 7.5 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85364110 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
