HE24-1A83 | Standex Electronics

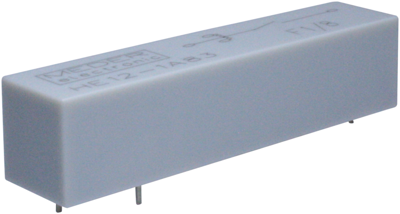

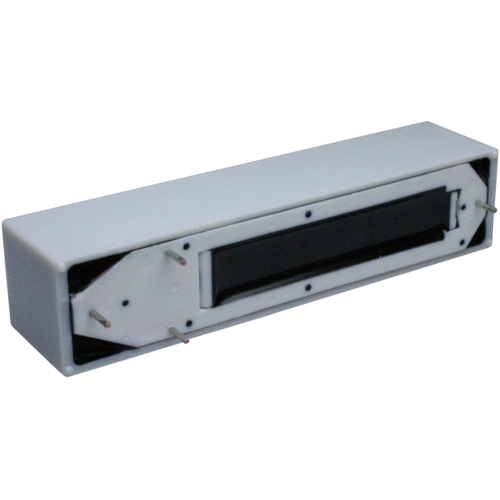

Reed relay, 24 V (DC), 1 Form A (N/O), DIP, 50 W, HE24-1A83
Unit Price (€ / pc.)
53.1811 € *
Available: 1 pcs.
Total Price:
53.18 € *
Price list
Quantity
Price per unit*
1 pcs.
53.1811 €
5 pcs.
50.0038 €
15 pcs.
48.0760 €
50 pcs.
45.9459 €
150 pcs.
44.0419 €
*incl. VAT plus shipping costs
Subject to prior sale
High-voltage reed relays, type Standex-Meder HE.
1 x NO contact, for PCB mounting; Breaking capacity: max. 50 W. Switching voltage: max. 7.5 kV. Switching current: max. 3.0 A. On-state current: max. 5.0 A. Rated coil power: max. 575 mW. Contact resistance (static): max. 150 mohm. Breakdown voltage contact-coil: min. 10 kVDC. Switching time (including bounce): max. 3.0 ms. Release time: max. 1.5 ms. Operating temperatures: –20 to +70 °C.
Technical attributes (type, coil voltage, typical coil resistance, max. pick-up voltage/min. release voltage): HE24-1A83, 24 VDC, 1000 ohm, 18/2.0 VDC

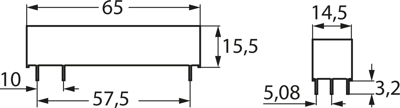

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (AC) | 7.5 kV | |
| Design | DIP | |
| Switching Voltage (DC) | 7.5 kV | |
| Coil voltage (DC) | 24 V | |
| Coil resistance | 1 kΩ | |
| Connection | PCB connection | |
| Contact type | 1 Form A (N/O) | |
| switching current | 3 A | |
| Grid | 5.08 mm | |
| Breaking capacity | 50 W |
