HE24-1A83-150 | Standex Electronics

Reed relay, 24 V (DC), 1 Form A (N/O), 50 W, HE24-1A83-150

Order No.: 30G4854
EAN: 4099889350326
MPN:
HE24-1A83-150
8524183150
Series: HE
HE24-1A83-150 Standex Electronics Reed Relays
Image may differ
Unit Price (€ / pc.)
59.0835 € *
Available: 16 pcs.
Total Price:
59.08 € *
Price list
Quantity
Price per unit*
1 pcs.
59.0835 €
5 pcs.
55.5373 €
15 pcs.
53.4072 €
50 pcs.
51.0391 €
150 pcs.
48.9209 €
*incl. VAT plus shipping costs
Subject to prior sale

High-voltage reed relays, type Standex-Meder HE.

For PCB mounting, with connecting cable (PTFE insulation), AWG 20/7; Contact type: 1 NO or 1 NC. Rated voltage: 24 VDC. Breaking capacity: max. 50 W. Switching voltage: max. 7500 VDC. Switching current: max. 3.0 A. On-state current: max. 5.0 A,. Contact resistance (static): max. 150 mohm. Pick-up voltage: max. 18 VDC. Release voltage: min. 3.5 VDC. Response time: (including bounce): max. 3.0 ms. Release time: max. 1.5 ms. Operating temperatures: –20 to +70 °C.

With 1 x NO contact.

Coil resistance: max. 1100 ohm. Rated power: 575 mW.

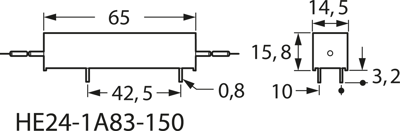

Type: HE24-1A83-150, high-voltage reed relay

Technical specifications
Filter Property Value
Switching Voltage (DC) 7.5 kV
Breaking capacity 50 W
Coil voltage (DC) 24 V
switching current 3 A
Contact type 1 Form A (N/O)
Switching Voltage (AC) 7.5 kV
Coil resistance 1.1 kΩ
Connection stranded wires
Logistics
Property Value
Country of origin CN
Customs tariff number 85364110
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
