H12-1A69 | Standex Electronics

Reed relay, 12 V (DC), 1 Form A (N/O), 50 W, H12-1A69

Order No.: 30G4878
EAN: 4099889350395
MPN:
H12-1A69
1912169114
Series: H

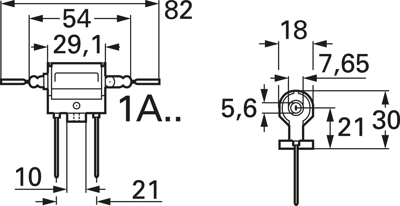

H12-1A69 Standex Electronics Reed Relays Image 1

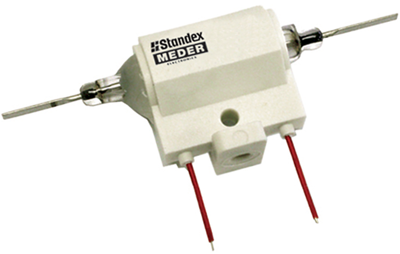

H12-1A69 Standex Electronics Reed Relays Image 2
Image may differ
Unit Price (€ / pc.)
55.0970 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
661.16 € *
*incl. VAT plus shipping costs
Subject to prior sale
12 pcs.
55.0970 €

High-voltage reed relays, type Standex-Meder H.

With horizontal wires. Strap and mounting hole for M 4 screw; Contact type: 1 NO or 1 NC. Breaking capacity: max. 50 W. Switching voltage: max. 7.5 or 10 kV. Switching current: max. 3.0 A. On-state current: max. 5.0 A. Contact resistance (static): max. 150 mohm. Dielectric strength of contact coil: min. 15 kVDC. Response time (including bounce): max. 3.0 ms. Release time: max. 1.5 ms. Operating temperatures: –20 to +70 °C.

1 x NO contact, 10 kV switching voltage.

Technical attributes (type, coil voltage, typical coil resistance, max. pick-up voltage/min. release voltage, typical rated power): H12-1A69, 12 VDC, 230 ohm, 8.4/1.8 VDC 625 mW

Technical specifications
Switching Voltage (AC) 10 kV
Breaking capacity 50 W
switching current 3 A
Switching Voltage (DC) 10 kV
Coil voltage (DC) 12 V
Connection stranded wires
Contact type 1 Form A (N/O)
Coil resistance 230 Ω
Logistics
Country of origin US
Customs tariff number 85364110
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
