DIP24-1C90-51D | Standex Electronics
Reed relay, 24 V (DC), 1 Form C (NO/NC), DIP, 3 W, DIP24-1C90-51D
Unit Price (€ / pc.)
9.9603 € *
Available: 55 pcs.
Total Price:
9.96 € *
Price list
Quantity
Price per unit*
1 pcs.
9.9603 €
25 pcs.
8.7703 €
50 pcs.
8.4728 €
200 pcs.
7.9968 €
500 pcs.
7.6874 €
*incl. VAT plus shipping costs
Subject to prior sale

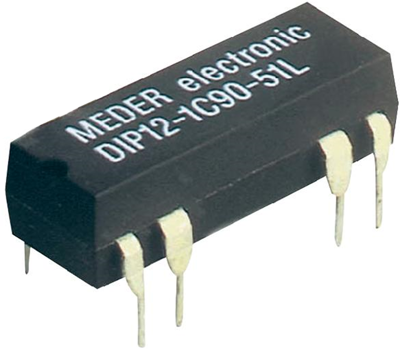

Reed relays, type Standex-Meder DiP-1C90-.

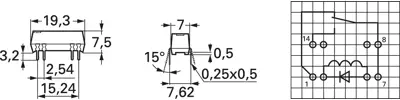

Dual row DiL package; Grid: 2.54 mm, with solder terminals for PCB mounting. Breaking capacity: 3.0 W. Switching voltage/current: 175 VDC/0.25 A. On-state current: 1.2 A. Contact resistance: 150 mohm. Dielectric strength: 200 VDC. Response time (incl. bounce): 0.7 ms. Release time: 1.0 ms.
1 x CO contact and suppressor diode, type 1C90-51D.
Technical attributes (type, rated voltage, coil resistance, response voltage, release voltage): DIP 24, 24 VDC, 2000 ohm, 16.8 VDC, 3.6 VDC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Coil resistance | 2 kΩ | |
| Contact type | 1 Form C (NO/NC) | |
| Connection | PCB connection | |
| switching current | 250 mA | |
| Switching Voltage (AC) | 175 V | |
| Breaking capacity | 3 W | |
| Switching Voltage (DC) | 175 V | |
| Coil voltage (DC) | 24 V | |
| Design | DIP |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364110 |
| Country of origin | DE |
| Original Packaging | Bar with 25 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
