DIP12-1A72-12D | Standex Electronics

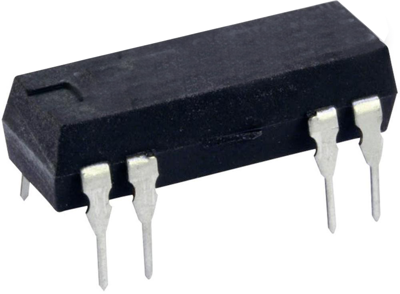

Reed relay, 12 V (DC), 1 Form A (N/O), DIP, 10 W, DIP12-1A72-12D
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
3.7842 € *
Available: 42 pcs.
Total Price:
3.78 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7842 €
25 pcs.
3.3320 €
100 pcs.
3.1535 €
250 pcs.
3.0464 €
1000 pcs.
2.8560 €
*incl. VAT plus shipping costs
Subject to prior sale
Reed relays, type Meder DiP/SiL-1A72-.

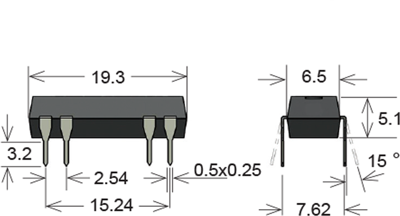

Version: DIP dual-row, SiL single-row. Grid: 2.54 mm, with solder terminals for PCB mounting. Breaking capacity: 10 W. Switching voltage/current: 200 VDC/0.5 A. On-state current: 1.0 A. Contact resistance: 150 mohm. Dielectric strength: 500 VDC. Response time incl. bounce (DiP): 0.5 ms, 0.7 ms (SiL). Release time: 0.1 ms.

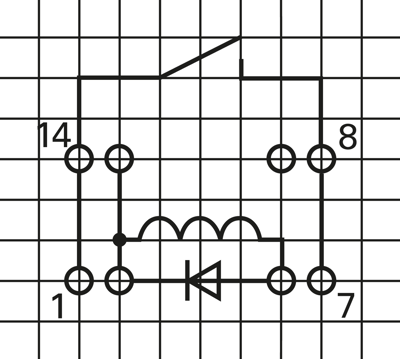

Dual-row, with 1 x NO contact and suppressor diode, type 1A72-12D.
Technical attributes (type, rated voltage, coil resistance, response voltage/release voltage): DIP 12, 12 VDC, 1000 ohm, 8.4 VDC, 1.8 VDC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 1 Form A (N/O) | |
| Design | DIP | |
| switching current | 500 mA | |
| Coil voltage (DC) | 12 V | |
| Coil resistance | 1 kΩ | |
| Switching Voltage (DC) | 200 V | |
| Switching Voltage (AC) | 200 V | |
| Breaking capacity | 10 W | |
| Connection | PCB connection | |
| Grid | 2.54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 25 pieces |
| Customs tariff number | 85364110 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
