DIP05-1C90-51L | Standex Electronics
Reed relay, 5 V (DC), 1 Form C (NO/NC), DIP, 3 W, DIP05-1C90-51L
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
7.1876 € *
Standard delivery time from the manufacturer is: 5 Weeks

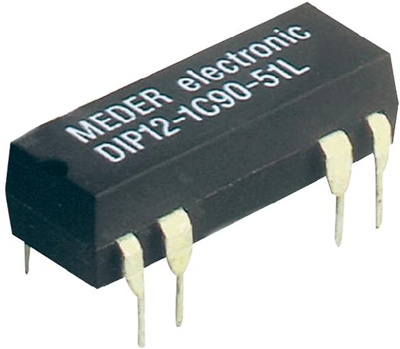

Reed relays, type Standex-Meder DiP-1C90-.

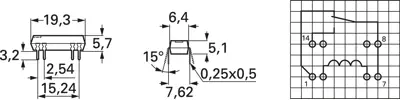

Dual row DiL package; Grid: 2.54 mm, with solder terminals for PCB mounting. Breaking capacity: 3.0 W. Switching voltage/current: 175 VDC/0.25 A. On-state current: 1.2 A. Contact resistance: 150 mohm. Dielectric strength: 200 VDC. Response time (incl. bounce): 0.7 ms. Release time: 1.0 ms.
1 x CO contact, without suppressor diode, type 1C90-51L.
Technical attributes (type, rated voltage, coil resistance, response voltage, release voltage): DIP 05, 5.0 VDC, 200 ohm, 3.5 VDC, 0.75 VDC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 1 Form C (NO/NC) | |
| Design | DIP | |
| switching current | 250 mA | |
| Coil voltage (DC) | 5 V | |
| Coil resistance | 200 Ω | |
| Switching Voltage (DC) | 175 V | |
| Switching Voltage (AC) | 175 V | |
| Breaking capacity | 3 W | |
| Connection | PCB connection | |
| Grid | 2.54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 25 pieces |
| Customs tariff number | 85364110 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
