CRF05-1AS | Standex Electronics

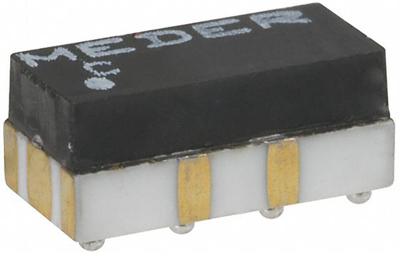

Reed relay, 5 V (DC), 1 Form A (N/O), SMD, 10 W, CRF05-1AS
Unit Price (€ / pc.)
12.6854 € *
Standard delivery time from the manufacturer is: 6 Weeks
Reed relays, type Standex Meder CRF.
Contact: NO. Breaking capacity: 10 W. Switching voltage: 170 V. Switching current: 0.5 A. On-state current: 1.0 A. Contact resistance: 200 mohm. Breakdown voltage contact-coil: 1.5 kVDC. Switching time: 0.1 ms. Release time: 0.02 ms. Operating temperatures: –40 to +125 °C.
Technical attributes (type, rated coil voltage, rated coil power, coil resistance, with/without solder pads): CRF05-1AS, 5.0 V, 167 mW, 150 ohm, with solder pads
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil resistance | 150 Ω | |
| Contact type | 1 Form A (N/O) | |
| Connection | SMD | |
| switching current | 500 mA | |
| Switching Voltage (AC) | 170 V | |
| Breaking capacity | 10 W | |
| Switching Voltage (DC) | 170 V | |
| Coil voltage (DC) | 5 V | |
| Design | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364110 |
| Country of origin | CN |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
