MK23-35-D-2 | Standex Electronics
Reed switche, SMD, 1 Form A (N/O), 15 W, 200 V (DC), 1 A, MK23-35-D-2
Unit Price (€ / pc.)
0.9877 € *
Standard delivery time from the manufacturer is: 4 Weeks

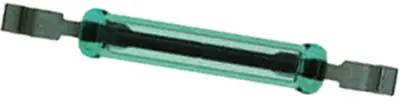

Reed sensor, MK23-35-D-2, Standex Electronics
The MK23-35-D-2 is a miniature surface mount reed switch with glass length of 10.5 mm and diameter of 2.1 mm. Rated power 20 W, Switching voltage 200 VDC, Switching current 1 Amp DC. The MK23-35 surface mount reed switch is a bare glass version of our surface mount reed sensors, offering a more economic and compact design.
Features
- Close differential
- Long life expectancy
Applications
- Air conditioning
- Gas metering
- Barcode scanner
- Security panel
- Water flow gauge
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (AC) | 200 V | |
| Connection | SMD | |
| Contact resistance | 150 mΩ | |
| Latching switching function | 1 Form A (N/O) | |
| Switching Voltage (DC) | 200 V | |
| Length | 15.75 mm | |
| Assembly | SMD | |
| switching current | 1 A | |
| Breaking capacity | 15 W | |
| Product type | reed sensor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
