MK15-C-2 | Standex Electronics
Reed switche, SMD, 1 Form A (N/O), 10 W, 180 V (DC), 0.5 A, MK15-C-2
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.4756 € *
Available: 1,364 pcs.
Total Price:
14.76 € *
Price list
Quantity
Price per unit*
10 pcs.
1.4756 €
50 pcs.
1.2971 €
250 pcs.
1.1305 €
1000 pcs.
0.9877 €
2500 pcs.
0.8925 €
*incl. VAT plus shipping costs
Subject to prior sale
Reed sensor, MK15-C-2, Standex Electronics
The MK15-C-2 is a normally closed surface mount reed sensor used in On/Off control switch, proximity, motion, position detection. Supplied in tape and reel according to IEC 286/part 3. Axial or gull-wing lead, high power switch. UL Approval.
Features
- Supplied in tape and reel
- Excellent for low power operations
Applications
- Switching element
- Appliance
- Telecommunication
- Security
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | reed sensor | |
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 10 W | |
| Switching Voltage (DC) | 180 V | |
| switching current | 0.5 A | |
| Contact resistance | 150 mΩ | |
| Assembly | SMD | |
| Connection | SMD | |

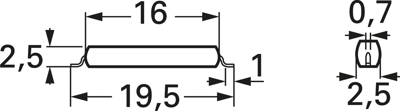

| Length | 19.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
