MK11-1A66B-500W | Standex Electronics

Proximity switch, built-in mounting M5, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, MK11-1A66B-500W

Order No.: 30G262
EAN: 4099889448757
MPN:
MK11-1A66B-500W
9112661054
Series: MK11
Standex Electronics
default L
front L
Image may differ
Unit Price (€ / pc.)
7.9730 € *
Available: 0 pcs.
Next delivery: 500 pcs. on 2024-07-23
Leadtime: On Request **
Total Price:
7.97 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9730 €
10 pcs.
7.0091 €
50 pcs.
6.5331 €
150 pcs.
6.2475 €
500 pcs.
5.9262 €
*incl. VAT plus shipping costs
**Subject to prior sale

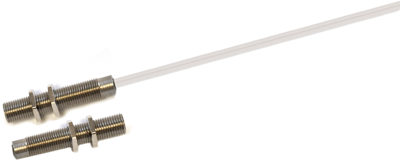

Proximity switches with reed contacts, type Standex-Meder MK11-1A66B-500W.

Made of stainless steel. NO contact; Breaking capacity: max. 10 W. Switching voltage: max. 200 VDC. Switching current: max. 0.5 A. On-state current: max. 1.25 A. Contact resistance (static): max. 150 mohm. Dielectric strength: 225 VDC. Switching time (including bounce): max. 0.5 ms. Termination: ribbon cable, 2 x 0.14 mm², 500-mm length. Bushing mount: fine thread M 5 x 0.5.

Type: MK11-1A66B-500W, proximity switch

Technical specifications
Connection stranded wires
Version reed sensor
Length 38 mm
Assembly built-in mounting M5
Latching switching function 1 Form A (N/O)
Breaking capacity 10 W
Switching Voltage (DC) 200 V
switching current 0.5 A
Logistics
Country of origin CN
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
