MK05-1A66B-500W | Standex Electronics

Reed switche, magnet, Surface mounting, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, MK05-1A66B-500W

Order No.: 30G245
EAN: 4099889448665
MPN:
MK05-1A66B-500W
2252711054
Series: MK05

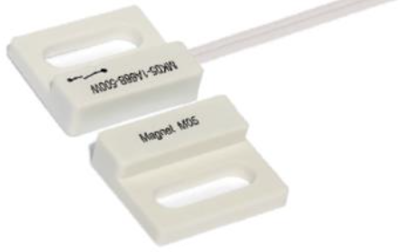

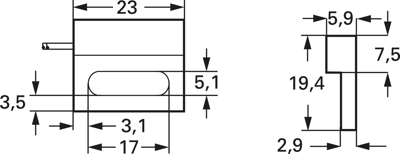

MK05-1A66B-500W Standex Electronics Proximity Switches, Reed switches Image 1
MK05-1A66B-500W Standex Electronics Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
3.7009 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
1,850.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
3.7009 €

Reed sensor, MK05-1A66B-500W, Standex Electronics

The MK05-1A66B-500W is the best value screw fastened flange mount reed sensor in a rectangular housing with cable terminals. Used in position, proximity, motion, level, and end limit sensing. Optional internal switch, cable, length, and termination. UL Approval.

Applications

  • Door and window control
  • Appliance
  • Industrial
  • Security
Technical specifications
Filter Property Value
Contact resistance 150 mΩ
Breaking capacity 10 W
Assembly Surface mounting
switching current 0.5 A
Length 23 mm
Product type reed sensor
Version magnet
Switching Voltage (DC) 200 V
Connection stranded wires
Latching switching function 1 Form A (N/O)
Logistics
Property Value
Country of origin CZ
Customs tariff number 85365080
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
