MK04-1A66B-2000W | Standex Electronics

Reed switche, PBT, Surface mounting, 1 Form A (N/O), 10 W, 180 V (DC), 0.5 A, MK04-1A66B-2000W

Order No.: 30G249
EAN: 4099889448689
MPN:
MK04-1A66B-2000W
2242711204
Series: MK04

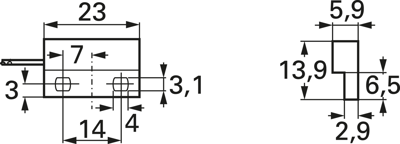

MK04-1A66B-2000W Standex Electronics Proximity Switches, Reed switches Image 1

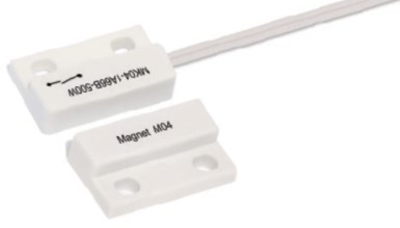

MK04-1A66B-2000W Standex Electronics Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
5.3193 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
2,659.65 € *
*incl. VAT plus shipping costs
**Subject to prior sale
500 pcs.
5.3193 €

Reed sensor, MK04-1A66B-2000W, Standex Electronics

The MK04-1A66B-2000W is the best value screw fastened flange mount reed sensor in a rectangular housing with cable terminals. Used in position, proximity, motion, level, and end limit sensing. Optional internal switch, cable, length, and termination. UL Approval.

Applications

  • Door and window control
  • Appliance
  • Industrial
  • Security
Technical specifications
Contact resistance 150 mΩ
Breaking capacity 10 W
Assembly Surface mounting
switching current 0.5 A
Length 23 mm
Product type reed sensor
Version PBT
Switching Voltage (DC) 180 V
Connection stranded wires
Latching switching function 1 Form A (N/O)
Logistics
Country of origin CZ
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
