MK04-1A66B-1000W | Standex Electronics

Reed switche, PBT, Surface mounting, 1 Form A (N/O), 10 W, 180 V (DC), 0.5 A, MK04-1A66B-1000W

Order No.: 30G246
EAN: 4099889448672
MPN:
MK04-1A66B-1000W
2242711104
Series: MK04

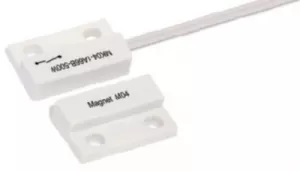

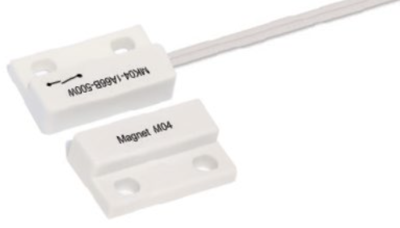

MK04-1A66B-1000W Standex Electronics Proximity Switches, Reed switches Image 1
MK04-1A66B-1000W Standex Electronics Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
5.7834 € *
Available: 87 pcs.
Total Price:
5.78 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7834 €
10 pcs.
5.0813 €
100 pcs.
4.4625 €
250 pcs.
4.2959 €
1000 pcs.
4.0103 €
*incl. VAT plus shipping costs
Subject to prior sale

Reed sensor, MK04-1A66B-1000W, Standex Electronics

The MK04-1A66B-1000W is the best value screw fastened flange mount reed sensor in a rectangular housing with cable terminals. Used in position, proximity, motion, level, and end limit sensing. Optional internal switch, cable, length, and termination. UL Approval.

Applications

  • Door and window control
  • Appliance
  • Industrial
  • Security
Technical specifications
Filter Property Value
Latching switching function 1 Form A (N/O)
Connection stranded wires
Version PBT
switching current 0.5 A
Assembly Surface mounting
Breaking capacity 10 W

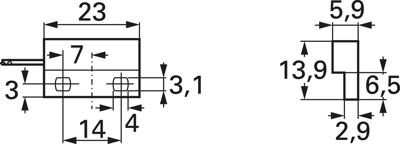

Length 23 mm
Switching Voltage (DC) 180 V
Contact resistance 150 mΩ
Product type reed sensor
Logistics
Property Value
Country of origin CN
Customs tariff number 85365080
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
