MK03-1C90C-500W | Standex Electronics

Reed switche, built-in mounting, 1 Form C (NO/NC), 10 W, 175 V (DC), 0.5 A, MK03-1C90C-500W

Order No.: 30G2402
EAN: 4099889448542
MPN:
MK03-1C90C-500W
2233903054
Series: MK03

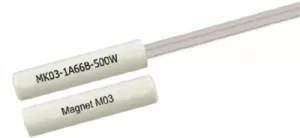

MK03-1C90C-500W Standex Electronics Proximity Switches, Reed switches Image 1

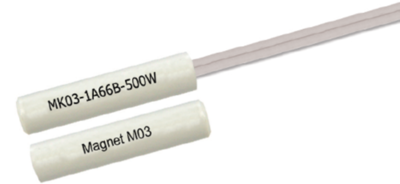

MK03-1C90C-500W Standex Electronics Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
5.2717 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
2,635.85 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
5.2717 €

Reed sensor, MK03-1C90C-500W, Standex Electronics

The MK03-1C90C-500W is a panel mount (5.75mm) reed sensor supplied in a cylindrically shaped housing with cable terminals. Optional internal switch, cable, length, and termination. UL Approval.

Applications

  • Door and window control
  • With magnetic floats for water level detection
  • Position sensing
  • Appliance
  • Industrial
  • Security
Technical specifications
Filter Property Value
Contact resistance 150 mΩ
Detecting distance 25 mm
Product type reed sensor
Switching Voltage (DC) 175 V
Breaking capacity 10 W
Assembly built-in mounting
switching current 0.5 A

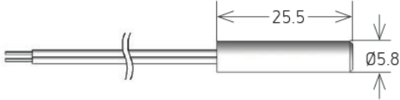

diameter 5.8 mm
Connection stranded wires
Length 25.5 mm
Latching switching function 1 Form C (NO/NC)
Logistics
Property Value
Country of origin CN
Customs tariff number 85365080
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
